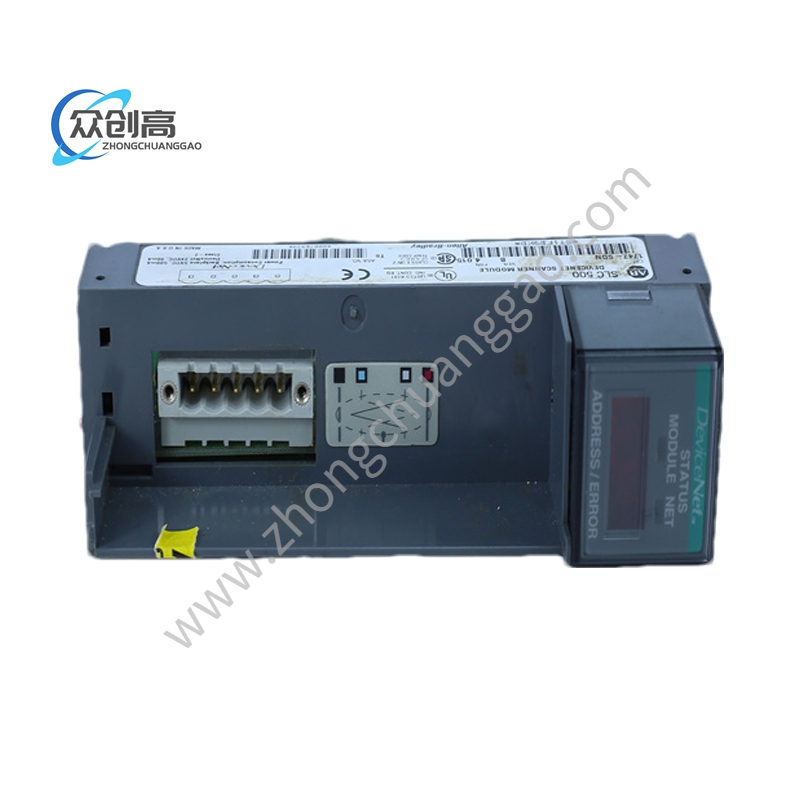

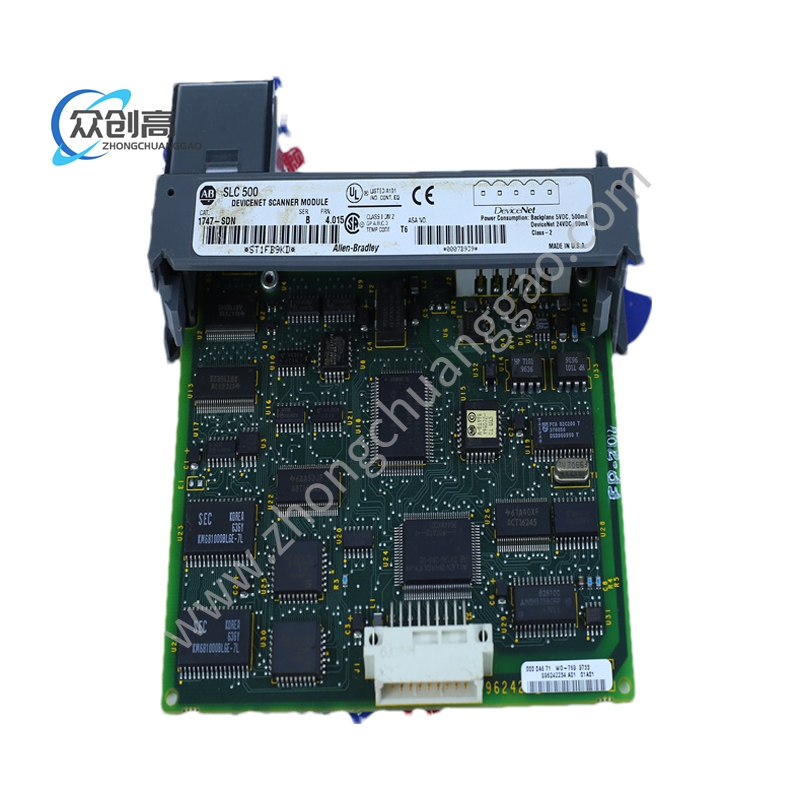

A-B 1747-SDN

配置高性能的远程无线数传电台或远程无线网络电台，外加满足防爆等级或符合IP56防护等级正面开门的机箱。就近布置于工业现场，工作温度-20oC~+60oC。配合各个中小型数据测控系统或SCADA系统应用，也可以作为大型DCS控制系统的远程I/O；广泛应用于环境监测、石油开采、电力无人值守变电站等场合。

XRIO-WI/ XRIO-WII的特点

·内置无线通讯装置： 无线电台方式(WRIO-WI型)，无线网络WiFi(WRIO-WII型)

·品种齐全的I/O模件(AI、AO、DI、DO、PI、LC等等)，搭配灵活，适应于各种系统规模；

·模拟量输入采样精度： 0.1%（大信号）、0.2%（小信号）

·高防护等级的现场机箱(IP54与IP65 )

·安装简便，经济的系统构成，配置灵活，使用简单。

·与DCS或PLC系统配合，作为远程测控I/O装置。

连接方式举例

Configure high-performance remote wireless data transmission radio or remote wireless network radio, and add a front door cabinet that meets explosion-proof level or IP56 protection level. Located nearby in the industrial site, with a working temperature of -20oC~+60oC. Cooperating with various small and medium-sized data measurement and control systems or SCADA system applications, it can also serve as remote I/O for large DCS control systems; Widely used in environmental monitoring, oil extraction, unmanned power substations, and other occasions.

Characteristics of XRIO WI/XRIO WII

·Built-in wireless communication device: wireless radio mode (WRIO WI type), wireless network WiFi (WRIO WII type)

·A complete range of I/O modules (AI, AO, DI, DO, PI, LC, etc.), with flexible configuration, suitable for various system scales;

·Analog input sampling accuracy: 0.1% (large signal), 0.2% (small signal)

·High protection level on-site chassis (IP54 and IP65)

·Easy to install, economical system composition, flexible configuration, and easy to use.

·Cooperate with DCS or PLC systems as a remote measurement and control I/O device.

Example of connection method
