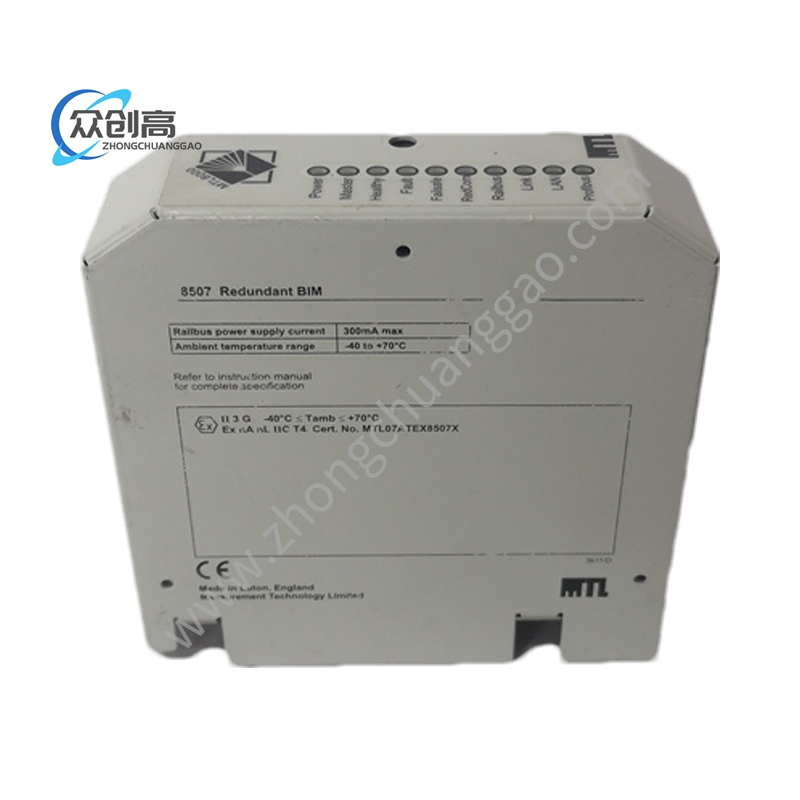

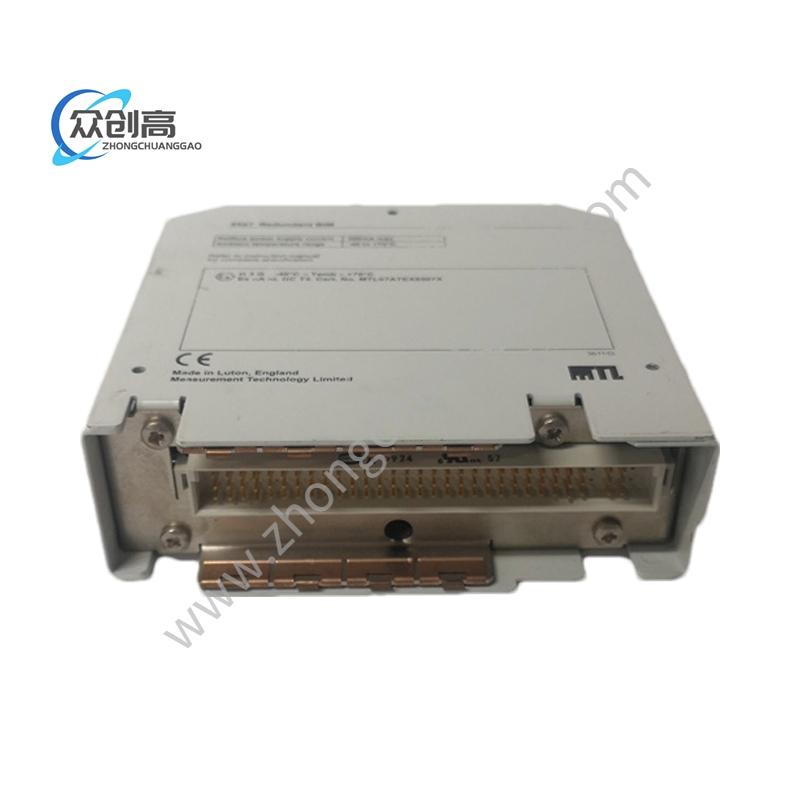

MTL 8507-BI-DP

运动控制卡是基于 PC 总线，利用高性能 微处理器(如 DSP 及大规模可编程器件实现多个同服电机的多轴协调控制的一种高性能的步进/同服电机运动控制卡，包括 脉冲输出、脉冲计数、数字输入、数字输出、D/A 输出等功能，它可以发出连续的、高频率的脉冲串，通过改变发出脉冲的频率来控制电机的速度，改变发出脉冲的数量来控制电机的位置，它的脉冲输出模式包括脉冲/方向、脉冲/脉冲方式，脉冲计数可用于编码器的位反馈，提供机器准确的位置，纠正传动过程中产生的误差，数字输入/输出点可用于限位、原点开关等。库函数包括S型、T型加速，直线插补和圆聊插补，多轴联动函数等。产品广泛应用于工业自动化控制领域中需要精确定位、定长的位置控制系统和基于PC的NC控制系统。具体就是将实现运动控制的底层软件和硬件集成在一起，使其具有伺服电机控制所需的各种速度、位置控制功能 这些功能的通过计算机方便地调用。

The motion control card is based on the PC bus, Utilizing high-performance microprocessors A high-performance stepper/servo motor motion control card that achieves multi axis coordinated control of multiple servo motors through DSP and large-scale programmable devices, including pulse output, pulse counting, digital input, digital output, D/A output, and other functions. It can emit continuous and high-frequency pulse strings, control the speed of the motor by changing the frequency of the pulses emitted, and control the position of the motor by changing the number of pulses emitted The pulse output mode includes pulse/direction and pulse/pulse mode. Pulse counting can be used for encoder bit feedback, providing accurate machine position, correcting errors generated during transmission, and digital input/output points can be used for limit and origin switches. Library functions include S-type and T-type acceleration, linear interpolation and circular interpolation, multi axis linkage functions, etc. The product is widely used in the field of industrial automation control, requiring precise positioning, fixed length position control systems, and PC based NC control systems. Specifically, the underlying software and hardware for implementing motion control are integrated together, enabling it to have various speed and position control functions required for servo motor control, which can be easily accessed through computers.
