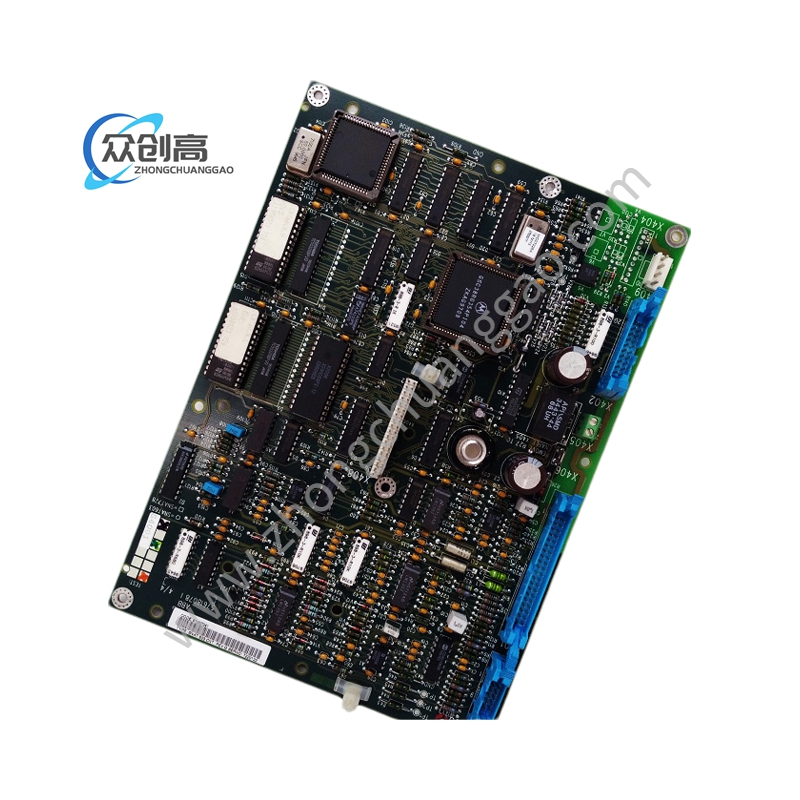

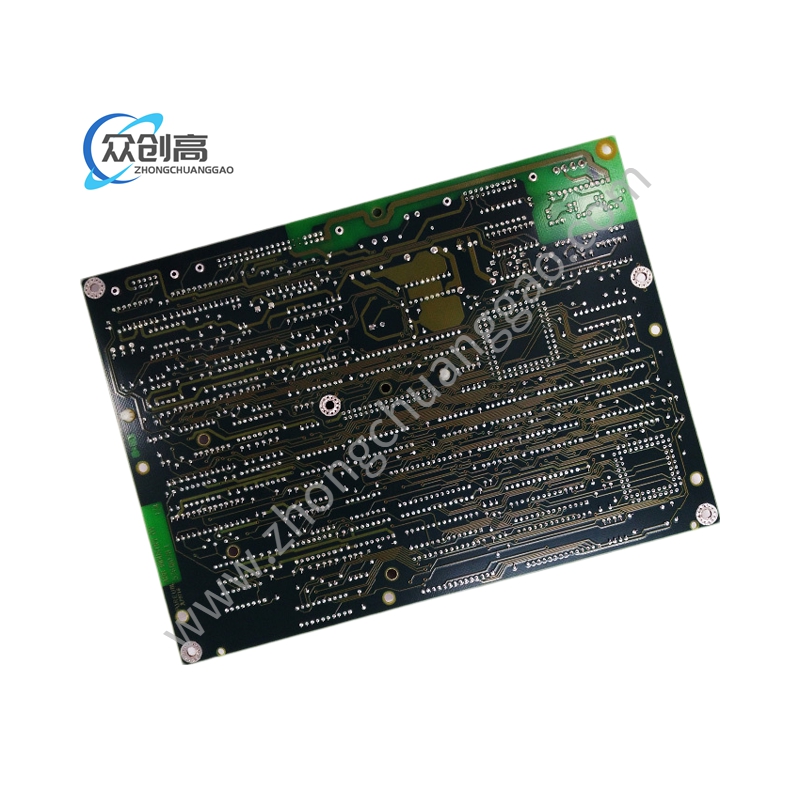

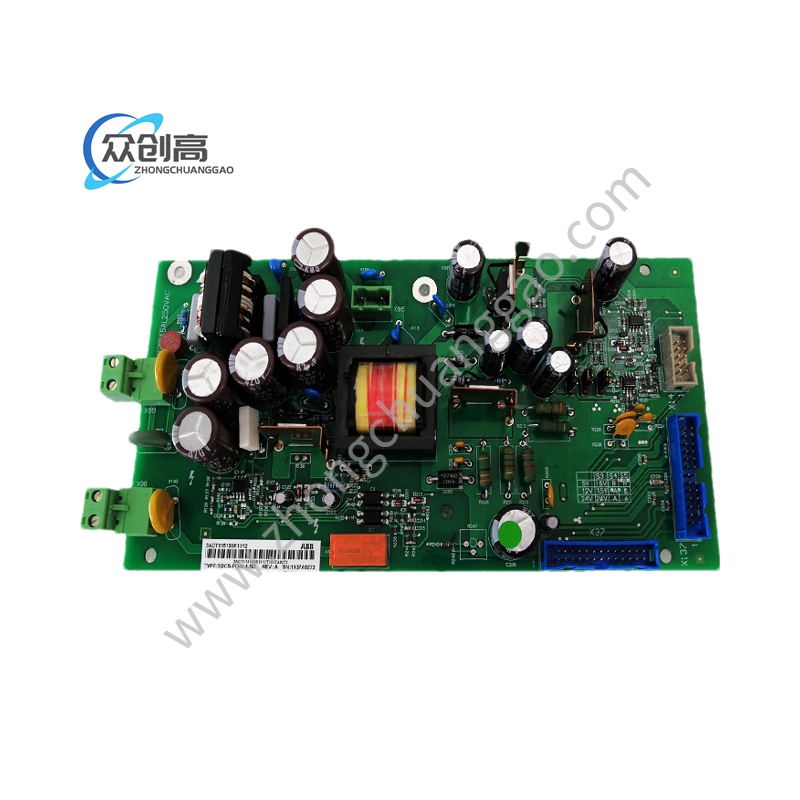

ABB SPA-ZC22

前端机配置

由于系统前端机的重要性，因此对前端机的性能要求也比较高。系统前端机采用工业控制PC机,其防护等级高，可工作于高温环境并且抗震动性能好，系统稳定。总之，前端机必须具备能工作于恶劣的工业环境的保护标准。

工控机前部面板上有7"CRT显示器和40键位的键盘;工控机可工作于0-50C的环境温度和5-95% (45C时)的相对湿度，与MNS配电柜基本相同。

ABB ESD2000系统前端机的基本配置如下:

●CPU: PIII 300Mhz

内存: 128M

●硬盘: 10G

功能卡插槽:4个

●通讯端口: 8个RS485总口或CAN总口。

ABB ESD2000系统前端机上的显示器和键盘可使具有操作权限资格的用户在现场能对若干参数进行操

作和修改，可直接合分断路器。

系统前端机安装于专用的前端机柜内，柜内配有专用的键盘和鼠标，以及系统24VDC开关电源ESD-POWERA、RTU输人与输出端子等等。

前端机柜内的交流电源引自于低压系统的母联柜电源,由于母联柜的二次工作电源来自两台电力变压器且接成互备供电形式,所以在一般情况下可避免停电事故。最理想的电源当引自于直流屏的浮充直流电源，此时开关电源要采用。

用于各种类型的开关，可实现如下功能:

采集开关状态和故障状态(后台操作)

继电器输出，可遥控开关或接触器合分闸

采集回路电流

长延时过载L和短延时短路S设定(后台操作)

通信接口交换信息
